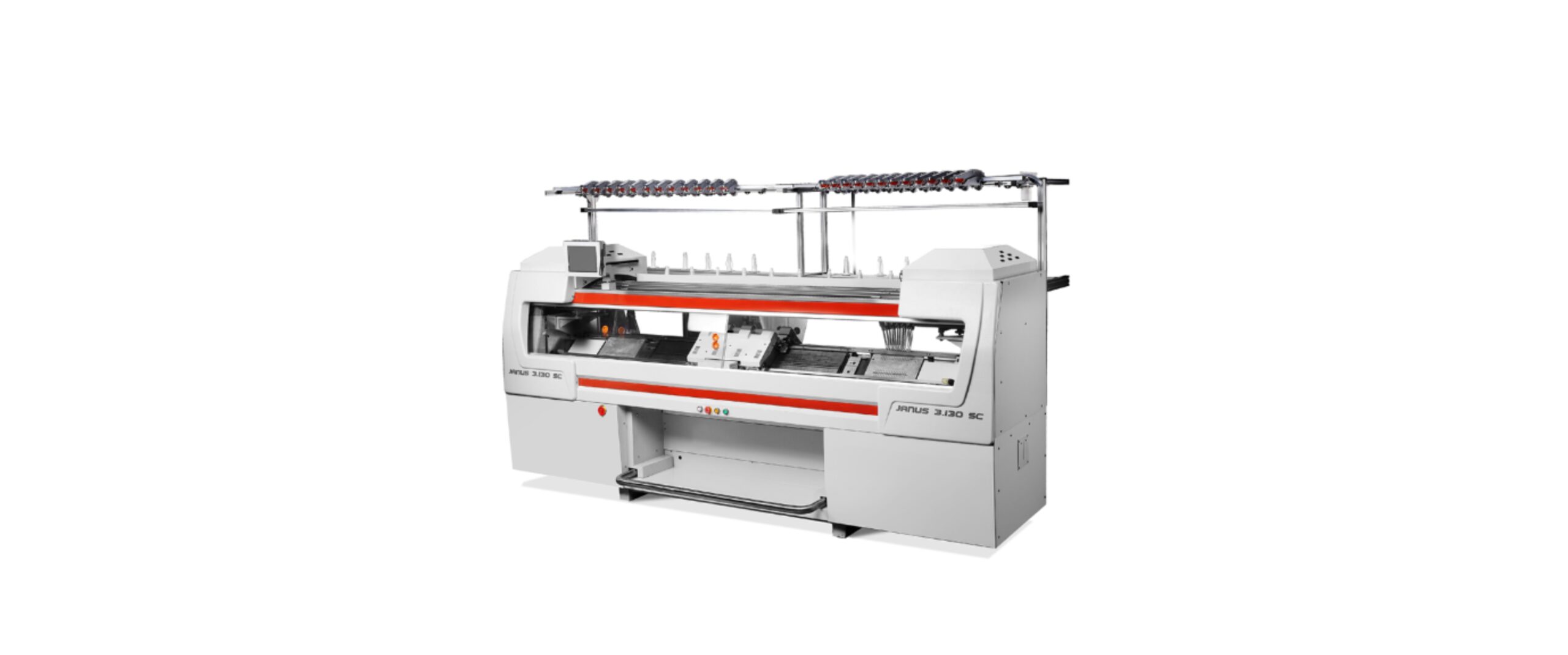

JANUS3.130SC-14G
This model is a triple intarsia type machine with open carriage design, direct yarn feeding, yarn feeder automatic motor control and yarn feeder arc design. There are total 24 yarn feeders (including 8 “pop-up” yarn feeders as standard), which can improve the knitting efficiency of some special fabrics.
This model is a brand-new control system, which can automatically arrange the pattern of 24 yarn feeders, and can automatically adjust the yarn feeder woven stopping position, effectively avoiding the phenomenon of yarn feeder overlapping; at the same time, the system can realize multiple yarns merge weaving in the same line. This function makes it easy to complete the knitting of complex patterns such as intarsia and complete garment knitting, which greatly improves the production efficiency.
The new control system can establish a network connection between each machine under the premise of sharing a server; with this function, we can adjust the working parameters of the working pattern in the computer; transfer and share the patterns, and check data reports for production control of each machine.
| Specifications | ||
|---|---|---|
| Gauge | 12/14G | |
| Needles/Knitting width | 728N/52Inches | |
| Knitting speed | Max speed 1.2m/s;255 section programmable speed | |
| Shaker | Motor driven;max 2 inches;racking at 1/2 and 1/4 needle in any position | |
| Knitting system | Triple systems with open carriage | |
| Transfer | Both front and back,not affecting by the carriage direction,sepepately knitting | |
| Sinker system | The stepping motor can adjust the active sinker,and can be adjusted according to different fabrics to achieve a pluarity of collecting and putting effects. | |
| Needle actuator | 8 section of electronic needle selector | |
| Scissors and clips | There is a set of scissors and clips on each side of the needle bed, and there are 24 sets of yarn feeders, each with a separate set of scissors and clips. | |
| Comb device | Comb device complement with scissors/lips device, and this device adopts releasing principle, in order to effectively realize yarn hanging and sloughing function | |
| Roller device | Comb and roller devices,255 section automic control, subdivision adjustment | |
| Conveyor yarn device | Yarn direct feeding to reduce resistance of yarn materials | |
| Yarn feeder | Stardard equipped with 24 yarn feeders( 8 of them with "pop-up" function | |
| Protection device | Automatic stopping,device if yarn broken,yarn knot,batching,striking,completion,overload,designated starting and stopping,program error happen. | |
| Driving system | Belt drive,AC servo motor control | |
| Safety device | The protective cover is equipped with a stopping sensor,emergency stopping device,power off device, and the whole machine cover to reduce noise and dust. | |
| Date input | Input data via U disk and computer connection. Networking and remote control technology: by sharing a server, we can establish a network connection between multiple machines. With this function, we can adjust the parameters of the working patterns in the computer, transfer and share the patterns, and check the data report of the production control of each machine. | |
| Size and weight | L*W*H:3560x1390x2010 mm; Net weight: 1458 kg | |
| Power supply system | Voltage: AC 220V/380V;Frequency: 50HZ/60HZ;Power:2.0KW | |
Display Details
Yarn Feeder
Yarn feeders use motor synchronous belt transmission, can work individually separated with carriages to improve operation efficiency and produce diversity patterns of fabric.

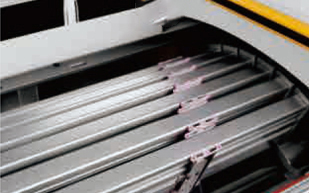

Arc Yarn Feeder
Yarn feeder design with an arch shape and “pop-up” function is optional, which will improve the efficiency and quality of the knitting fabric in a small area.

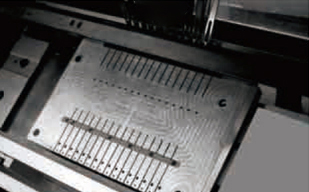

Independent Scissors and Clips
Independent scissors and clips, each yarn feeder correspond independent scissor and clip, in order to control yarn feeder in and out easily.

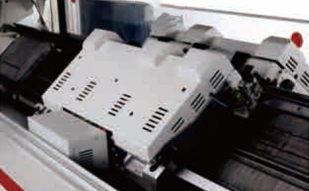

Open Carriage
Open carriage design, the yarn can be fed directly, and in a result to reduce yarn feeding resistance.
