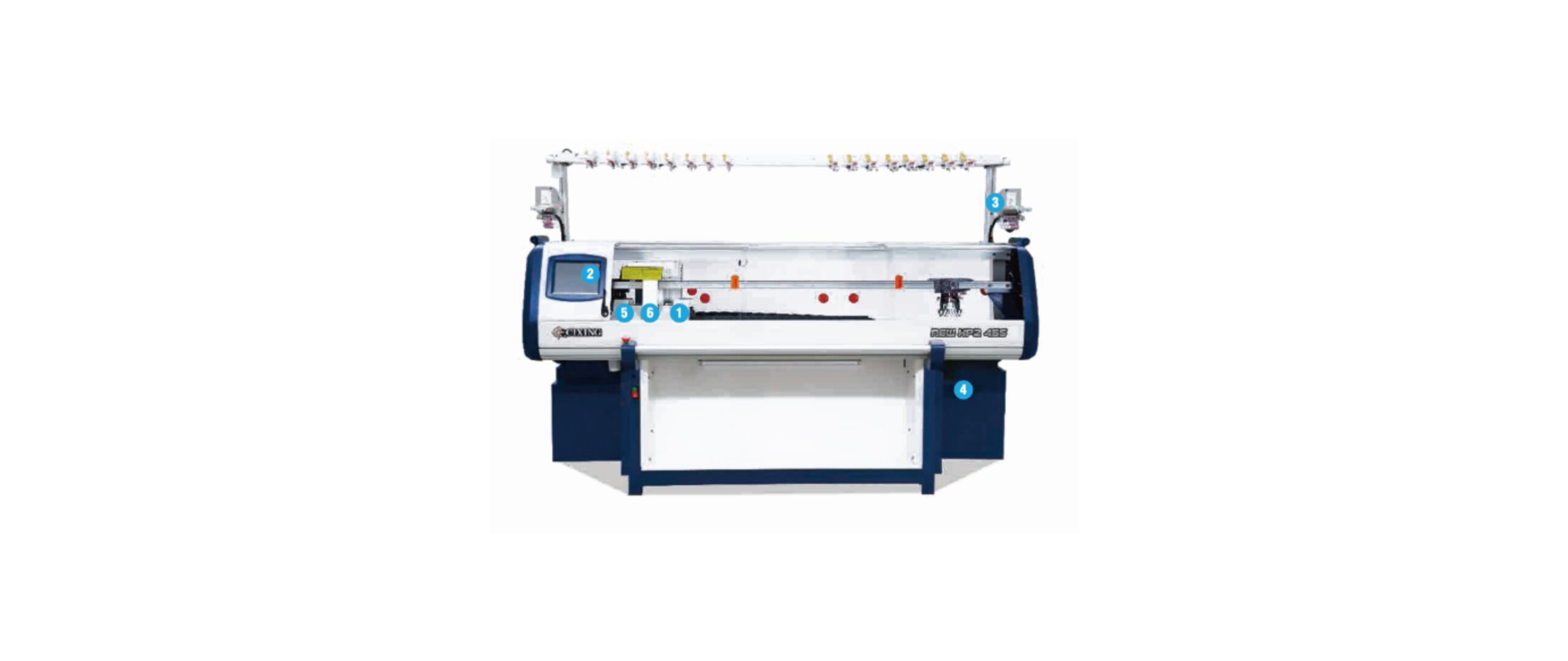

NEW HP2-45S|NEW HP2-52S
The single-head double-system roller model can be equipped with a comb device and adopts the Hengqiang integrated control system.
The hardware is equipped with a motor connecting rod. Compared with the magnet-seat type connecting rod, the large rod wear is eliminated, the single-port intermediate rotation can be realized, the rotation distance is shortened, the swing control position is more accurate, and the ultra-small head design can be improved efficiency by about 20%. The machine realizes multi-segments stitch knitting in the same line with the equipment of stitch motor with dynamic stitch function.
These series uses digital technology to achieve the patterns of weaving, pointel, tuck, tight tuck, apparent shape, hidden shape, intarsia, float less intarsia and other irregular structure patterns.
| Specifications | ||
|---|---|---|
| NEW HP2-45S | NEW HP2-52S | |
| Gauge | 5G, 5/7G, 12G, 14G, 16G | |
| Knittig width | 45 Inches | 52 Inches |
| Knitting speed | Max speed 1.6 m / sec, 32 segment programmable speed | |
| Stitch density | 32 segments of electronic control, the use of subdivision technology, adjustable range:0-650, more accurate control of the length of fabric | |
| Knitting system | Single carriage with double systems | |
| Rib transfer | Both front and back, not affecting by the carriage direction, separately knitting | |
| Sinker System | The stepping motor can adjust the movable settling plate and can be adjusted according to different fabrics to achieve a variety of collecting and putting effects. | |
| Actuator | 8 section electronic needle selectors | |
| Comb device | The comb device with releasing pinciple,can effectively realize yarn hanging and sloughing function | |
| Roller device | Main roller and the comb,the 32 section of automatic control,subsection adjustment | |
| Color changing device | 8 set of yarn feeder configuration in the right and left sides of the guide rail | 8+4 set of yarn feeder configuration in the right and left sides of the guide rail |
| Protection | Automatic stopping device if yarn broke, yarn knot, batching, striking, completion,overload, designated starting and stopping, program error | |
| Driving system | Belt drive,AC servo motor control | |
| Motor connecting rod | The connecting rod is driven by the machinery electron motor,in a result to achieve more accurate direction changing | |
| Safefy device | The whole machine cover to reduce noise and dust,the protecting cover is equipped with stopping sensor,emergency stopping,power off device | |
| Data imput | Through the U disk, computer connection for direct imput of data | |
| Lauguage choice | Multi-language version: support Chinese, English, Arabia and other languages,but also according to customer needs to increase the required language | |
| Size | L*W*H: 2180X850X1870 mm | L*W*H: 2530X850X1870 mm |
| Weight | 1000kg | 1000kg |
| Power | Voltage: AC 200V; Frequency: 50HZ; Power: 1.0KW | Voltage: AC 220V; Frequency: 50HZ; Power: 1.5KW |
Display Details

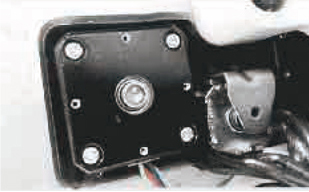

Stitch Motor
With dynamic stitch function, using high speed stepping motor, multi-stitch function can be achieved in one line.

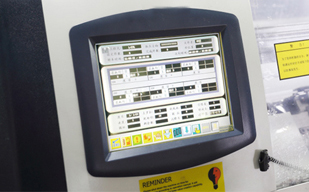

Display Screen
It adopts industry LCD displayer with graphic touch control, multi-color. The data of knitting amount, time, speed, roller, stitch, yarn feeder, etc. is all can be seen on the screen.

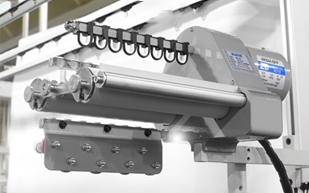

Yarn Storage
Positive Yarn Storage could reduce resistance while the yarn is moving and is especially suitable for fabrics with a lack of elasticity and brittleness, such as cashmere yarn, rabbit hair yarn, to make the fabric even and improve knitting efficiency.

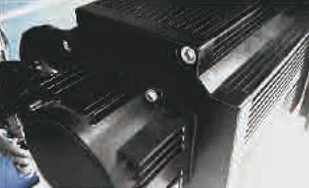

Servo Motor
Using CANI communication control, we can achieve fast return and diversion of the machine head, accurate positioning, and smooth commutation.

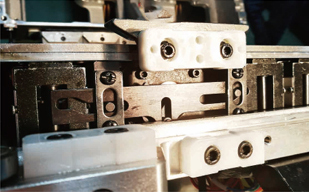

Motor Connecting Rod
The connecting rod is driven by the machinery electron motor, in a result to achieve more accurate direction changing

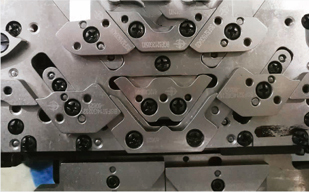

Tight Tuck
To achieve different tightnesses of tight tuck, the cam is controlled by machinery electric motor and ranges from 0-90.
