GE2-45C/52C/56C|GE2-60S|GE3-45C/52C/56C
This type is single carriage with double systems/triple systems. This model is equipped with comb device, scissor and clip device. The comb device is adopted with active release principle, with which the closed compound needle can effectively realize hang yarn and sloughing function. These two devices supplement each other, and coordinate operating. In this way, the yarn waste is reduced, and the production efficiency is improved.
The hardware is equipped with a motor connecting rod. Compared with the magnet-seat type connecting rod, the large rod wear is eliminated, the single-port intermediate rotation can be realized, the rotation distance is shortened, the swing control position is more accurate, and the ultra-small head design can be improved efficiency by about 20%. The machine realizes multi-segments stitch knitting in the same line with the equipment of stitch motor with dynamic stitch function.
These series uses digital technology to achieve the patterns of weaving, pointel, tuck, tight tuck, apparent shape, hidden shape, intarsia, floatless intarsia and other irregular structure patterns.
| Specifications | ||||
|---|---|---|---|---|
| GE2-45C/52C/56C | GE3-45C/52C/56C | GE2-60S | ||
| Gauge | 5G, 6G, 7G, 8G, 9G, 10G, 12G, 14G, 15G, 16G, 18G, 5/7G | 3.5G, 4G | ||
| Knittig width | 45, 52inches | 60inches | ||
Display Details

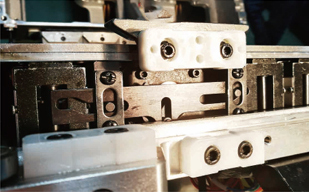

Motor Connecting Rod
The connecting rod is driven by the machinery electron motor, in a result to achieve more accurate direction changing
Sinker System
Flat knitting machine for knitting needle movement in the rise and fall with the regularity of the moment, to achieve the stitch transfer, stitch press off, ,stitch knit, stitch tuck such as knitting effects, ,need to help latch needle from sinker to complete, ,also improve the capacity of weaving. Sinker control systems make the sinker adjustable and can be controlled or adjusted according to the knitting situation. The function of the sinker and presser foot is very similar, but the sinker is more reliable and practical than the presser foot.
Scissors and Clips
When woven products，scissors and clamps work with each other，so it can cut the yarn which connect with fabric but temporarily unused. This can avoid the waste yarn and product damage or because of thread is too long，possible existence of yarn winding and so hazards. Wasted time of hand-cut yarn will be save and increase efficiency，and easier to production management.

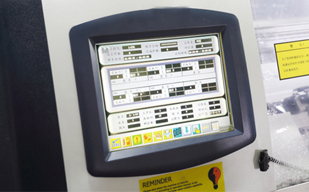

Display Screen
The latest cam board controlled by stepper motor transmission, performance is more stable.

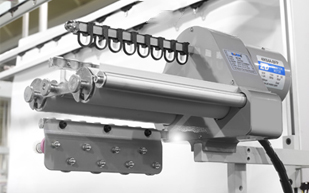

Yarn Storage
Positive Yarn Storage could reduce resistance while the yarn is moving, is suitable for fabric with low elasticity and brittleness such as cashmere yarn, rabbit hair yarn and so on in a result to make the products more even and smooth, as well as improve the machine weaving efficiency.

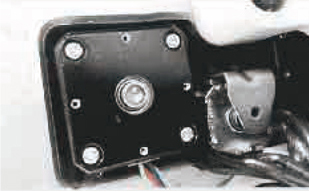

Dynamic Stitch
With dynamic stitch function, using high speed stepping motor, multi-stitch function can be achieved in one line.
